TruePoint provided 3D laser scanning services for a museum in Toledo, Ohio.

Existing Conditions Survey a Museum

Location: Toledo, Ohio

Task: The client was adding a greenhouse to an existing museum. TruePoint provided 3D laser scanning services to capture the as-built conditions of the historic building façade and parapet walls.

Challenge: The client was on a tight timeline and needed point cloud files delivered quickly. They were worried that traditional measurement methods would be time consuming and inaccurate. The client would also have the added expense of renting a lift to take these measurements manually.

Solutions: In one day on site, TruePoint provided accurate measurements using an industry-leading survey-grade Leica laser scanner. TruePoint registered the data to existing survey control for the client’s use and aligned the point cloud to their existing 2D structural drawings. Laser scanning was conducted safely from ground level and did not require the use of a lift.

Deliverable: TruePoint provided the client with intensity map point cloud files (.rcp and .rcs files).

Added Value: TruePoint was familiar with the site having done previous work there. Having this experience allowed us to quickly provide a proposal for the scope of work. Once on-site, we efficiently accessed the museum and complete scanning in the shortest amount of time possible. The client requested that only the East and West façade of the museum be laser scanned. TruePoint worked closely with the client to document these requirements and conduct 3D laser scanning of the specific areas needed, saving the client additional time and money. The client quickly received point cloud files aligned to their existing 2D structural drawings so they could begin the design phase and plan the connection points for the greenhouse.

TruePoint has provided 3D laser scanning and modeling services for some of the best-known municipalities, engineering firms and companies in the United States. We are experienced in laser scanning construction sites, historic buildings, refineries, power plants, manufacturing facilities, airport facilities, water treatment facilities, stadiums, hospitals, universities, and more. We high definition laser scan the interior and exterior of buildings; structural, mechanical, electrical and plumbing features; mechanical rooms, equipment, conduit and piping down to ½ inch diameter. Our team of in-house scan technicians and engineers work with each client to develop an accurate understanding of the existing conditions and create custom deliverables, ranging from raw data to 2D drawings and 3D models. For more information contact TruePoint Laser Scanning at 419-843-7226 or email info@truepointscanning.com.


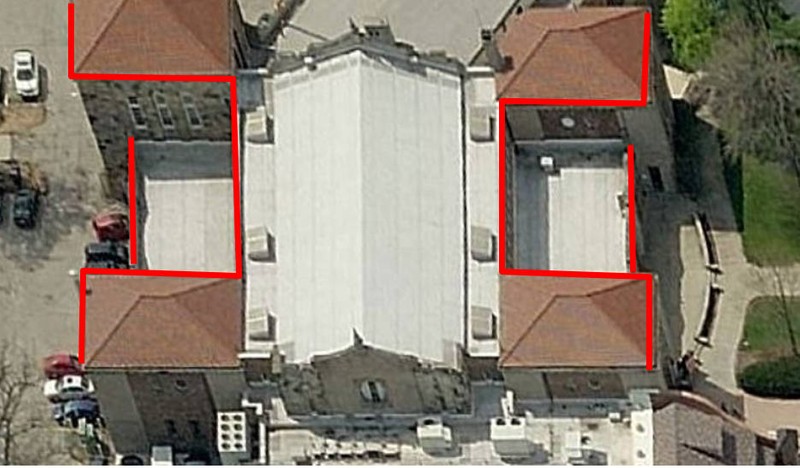

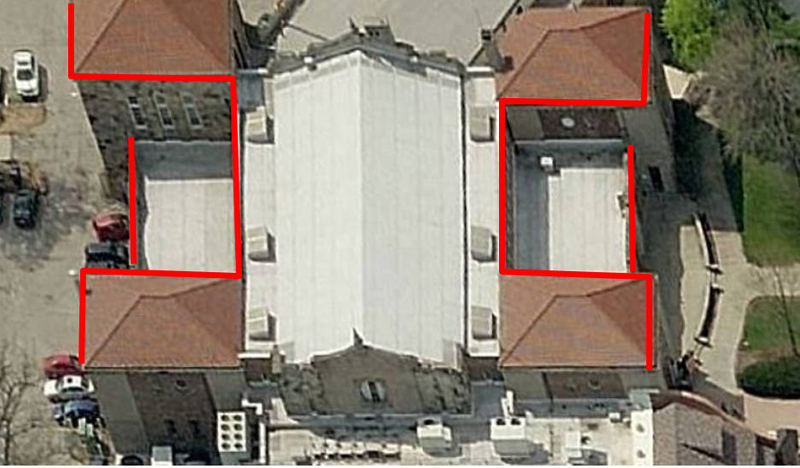

The client need the East and West façade 3D laser scanned. TruePoint worked closely with the client to document these requirements.

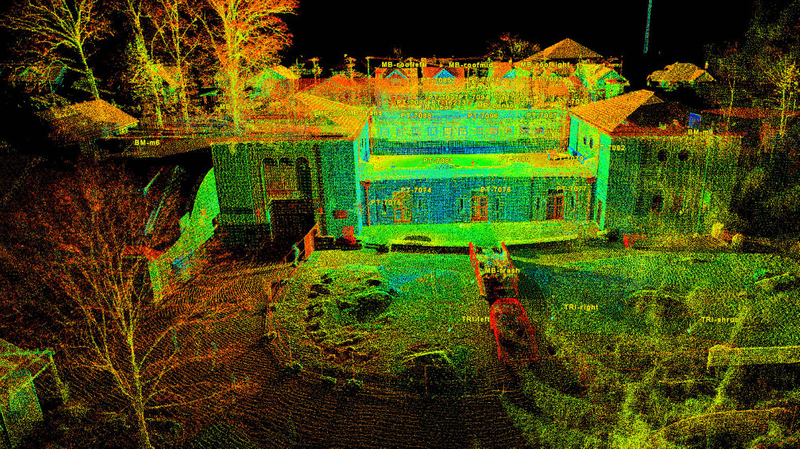

Intensity map point cloud of the building façade and parapet walls.

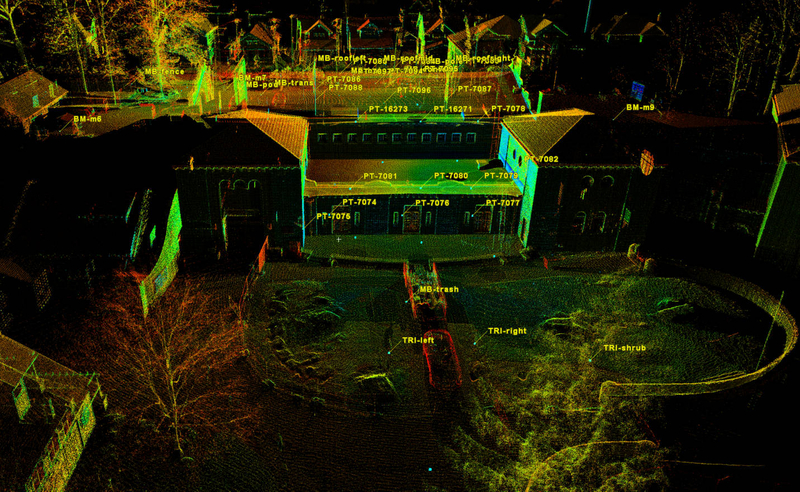

TruePoint quickly aligned the point cloud to their existing 2D structural drawings.
