Case Study: 3D Laser Scanning Aids in Hotel Renovation

Location: Toledo, Ohio

Task: A hotel developer plans to invest $30 million to renovate a 200-room hotel in downtown Toledo, Ohio. TruePoint performed laser scanning services to aid this client in the renovation. TruePoint 3D laser scanned the exterior elevation, basement, main lobby level, 2nd floor and elevator shaft – more than 30,000 square feet of space. All structural and architectural features were captured as part of the scan.

Challenge: No accurate as-built drawings existed. It would have been difficult, costly and time consuming to manually measure the 19-story building. The developer was not local, making transportation and lodging an added expense. Safety was also a concern, as the building was partially demolished and contained asbestos.

Solutions: TruePoint quickly mobilized to the site and captured the existing conditions of the hotel. Using a P40 survey-grade Leica ScanStation, the local TruePoint scan technician tied the data to survey control, achieved 2-4mm accuracy, and mitigated movement, ensuring level scans.

Deliverables: The client received .rcs Intensity Map Point Cloud files, 2D AutoCAD Floor Plans, 2D Point Cloud Sheets, a 3D Revit 2017 LOD 100 Model and TruViews.

Added Value: To save costs and expedite this project, only the unique floors of the hotel were laser scanned. Capturing the basic structural and architectural features will immensely help the architect in planning the hotel renovations. Laser scanning quickly captured precise data while avoiding the risk of the unsafe environment. TruePoint collected all building information, eliminating the need to return to the site for additional measurements.

For 3D laser scanning of hotels and other resort properties, contact TruePoint at 419-843-7226 or info@truepointscanning.com.


TruePoint 3D laser scanned the exterior elevation, basement, main lobby level, 2nd floor and elevator shaft – more than 30,000 square feet of space.


TruePoint CAD engineers developed a 3D Revit 2017 LOD 100 Model for the client to plan the renovation.


Point cloud of 2nd floor.


LOD 100 Model close-up of basement and 1st floor beams.


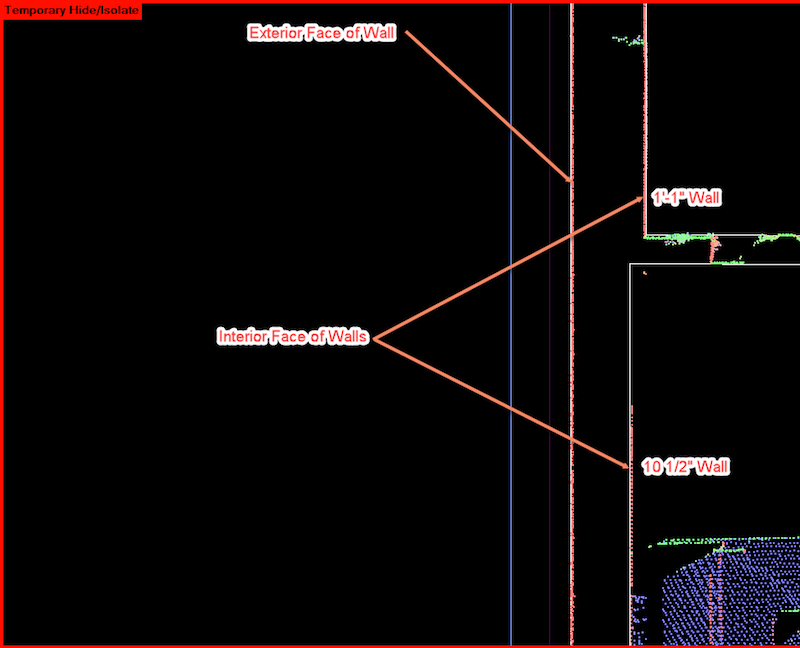

Detail of exterior wall dimensions.


3D model closeup of northwest stairwell.
