The client needed to accurately document existing conditions.

Case Study: 3D Laser Scanning a Power Plant

Location: Ann Arbor, Michigan

Task: TruePoint provided 3D laser scanning and modeling services for a Power Plant in Ann Arbor, Michigan, which generates and processes four main services: steam, electricity, compressed air and domestic hot water. The objective was to as-built survey the 5-level building, basement, exterior facades, rooftop areas, electrical switch gear rooms, vaults and interstitial space below the control room. TruePoint generated a 3D model in Bentley Microstation for the client’s use. The model included all civil, structural, electrical and mechanical features, including piping and conduits ½" in diameter and larger.

Challenge: The client needed to accurately document existing conditions. Due to the vast space and density of piping, it would have been much more difficult and time consuming to accurately depict the location of pipe runs, structural features and other details in the plant manually. It would have also been difficult and unsafe to capture overhead and structural features without the use of a lift.

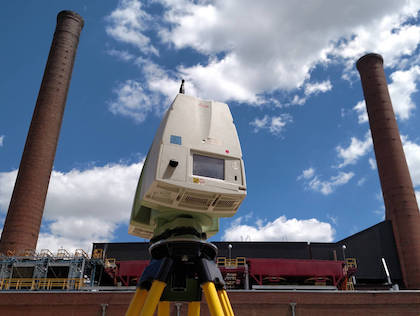

Solutions: Utilizing several scan technicians and multiple Leica laser scanners, including the Leica P-40, P-20, and C-10 ScanStation, TruePoint was able to occupy existing plant benchmarks and orient the data to survey control. TruePoint’s scan technicians captured full color panoramic photographs at each scan location with the on-board camera. TruePoint completed over 1,200 individual scans for this project due to the density of the piping.

Deliverables: TruePoint’s team of in-house CAD technicians provided Microstation POD files, full-color TruViews and a Bentley Microstation V8i 3D model.

Added Value: TruePoint communicated directly with on-site personnel at the Power Plant and participated in daily work briefings to ensure compliance with plant safety protocol. Additionally, TruePoint’s CAD technician visited the site with the scan technician, utilizing cutting edge methods to conduct in-field verification and quality assurance review of the 3D model on tablets in real time using both virtual reality and augmented reality methods.

For 3D laser scanning of power plants or other complex mechanical spaces, contact TruePoint at 419-843-7226 or locally in Ann Arbor at 734-807-0117 or email annarbor@truepointscanning.com.

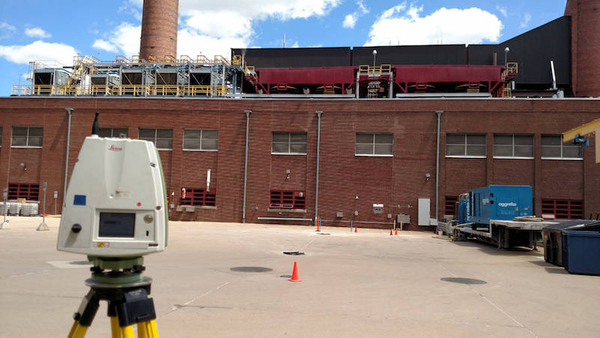

TruePoint provided 3D scanning services for a Power Plant in Ann Arbor, Michigan.


3D model overlaid with colorized point cloud of plant exterior and rooftop.


Colorized point cloud of plant exterior and rooftop.


3D model overlaid with colorized point cloud of exterior and rooftop.


3D model overlaid with colorized point cloud of exterior and rooftop.


3D wireframe view of interior of power plant.


3D model of exterior facades and rooftop.

Rick using A360 on Tablet to verify model.JPG

CAD technician conducting in-field verification and quality assurance review of the 3D model.


3D wireframe view of exterior of plant.


3D model of exterior facades and rooftop.


3D wireframe view of exterior of plant.


3D wireframe of electrical vaults.


3D model of electrical vaults.


3D model of overhead MEP features.


3D model of structural steel.
